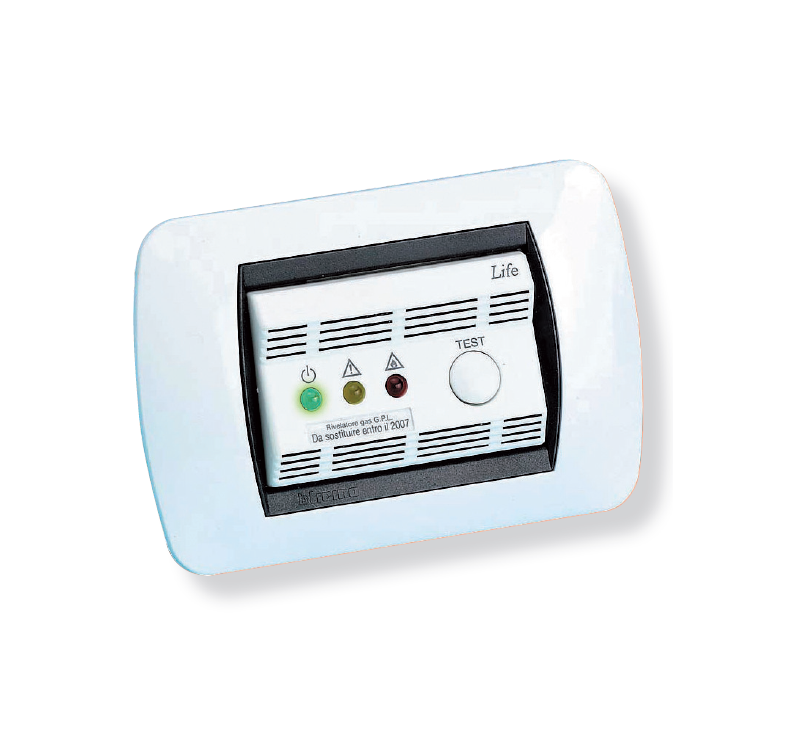

LIFE Gas detector for recessed installation
Life is a gas leak detector for recessed installation with a 3 modulars box and it can be linked to some important plates such as AVE, BTICINO, VIMAR, LEGRAND etc… This detector has been manufactured following the best techn… See more...
Life is a gas leak detector for recessed installation with a 3 modulars box and it can be linked to some important plates such as AVE, BTICINO, VIMAR, LEGRAND etc…

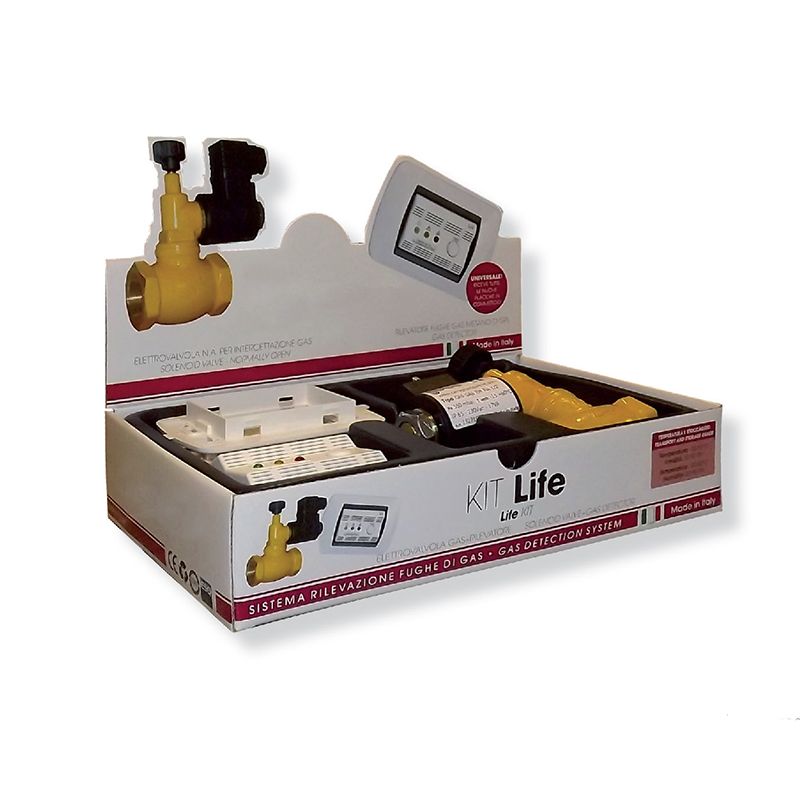

This detector has been manufactured following the best technologies and is provided with a sophisticated self-diagnosis to signal possible anomalies. The detector can also be connected to an electro-valve that detects the gas leakage. In danger conditions the electro-valve is simultaneously actuated by an acoustic signal.
Standard Specifications
Power supply: 230 Vac (±10%) - Recessed installation
Absorption: 4,5 VA
Sensor: Catalytic
Alarm level: 10% L.E.L. - Measuring range: 0÷20% LEL
Output relay: exchange contacts 8A 250Vac - Buzzer 85dB (A) 1m
Dimensions: 3 modulars box (503)
IP42
Options
Life gas methane - white cod.36900680
Life gas methane - anthracite cod.36910682
Life gas LPG - white cod.36900681
Life gas LPG - anthracite cod.36910683
To view the video, you need to accept our Cookie Policy. If the player doesn't appear, click the link below.
Compatibility of civil series plates
Holder Plates Geca
ABB
| SERIE | A | B | C | D | E |
|---|---|---|---|---|---|
| Chiara | X | ||||
| Elos | X | ||||
| Mylos | X |
AVE
| SERIE | A | B | C | D | E |
|---|---|---|---|---|---|
| Banquise | X | ||||
| Noir | X | ||||
| Sistema 44 | X |
Biticino
| SERIE | A | B | C | D | E |
|---|---|---|---|---|---|
| Living International | X | ||||
| LivingLight | X | ||||
| LivingLight Tech | X | X | |||
| LivingLight Air | X | X | |||
| Matrix | X | ||||
| Luna | X | ||||
| Axolute | X | ||||
| NOW | X |
Gewiss
| SERIE | A | B | C (Optional) | D | E |
|---|---|---|---|---|---|
| Playbus | X | ||||
| Playbus young | X | ||||
| Chorus ONE | X | ||||
| Chorus Lux | X | ||||
| Chorus Art | X | ||||
| Chorus Flat | X | ||||
| Chorus Geo | X |
Legrand
| SERIE | A | B | C | D | E |
|---|---|---|---|---|---|
| Vela | X |
Simon urmet
| SERIE | A | B | C | D | E/U (Optional) |
|---|---|---|---|---|---|
| Nea Flexa | X | ||||
| Nea Kadra | X | ||||
| Nea Expi' | X |
Vimar
| SERIE | A | B | C | D | E |
|---|---|---|---|---|---|
| Idea | X | ||||
| Idea Rondò | X | ||||
| Eikon | X | ||||
| Eikon EVO | X | ||||
| Plana | X | ||||
| Arkè | X |
